EduBoard EBIP110 RK3588
AI-ready 110" smart display: Google EDLA certified Android 15 on RK3588 with a 6 TOPS NPU, the UMind AI whiteboard and a full all-in-one software ecosystem.

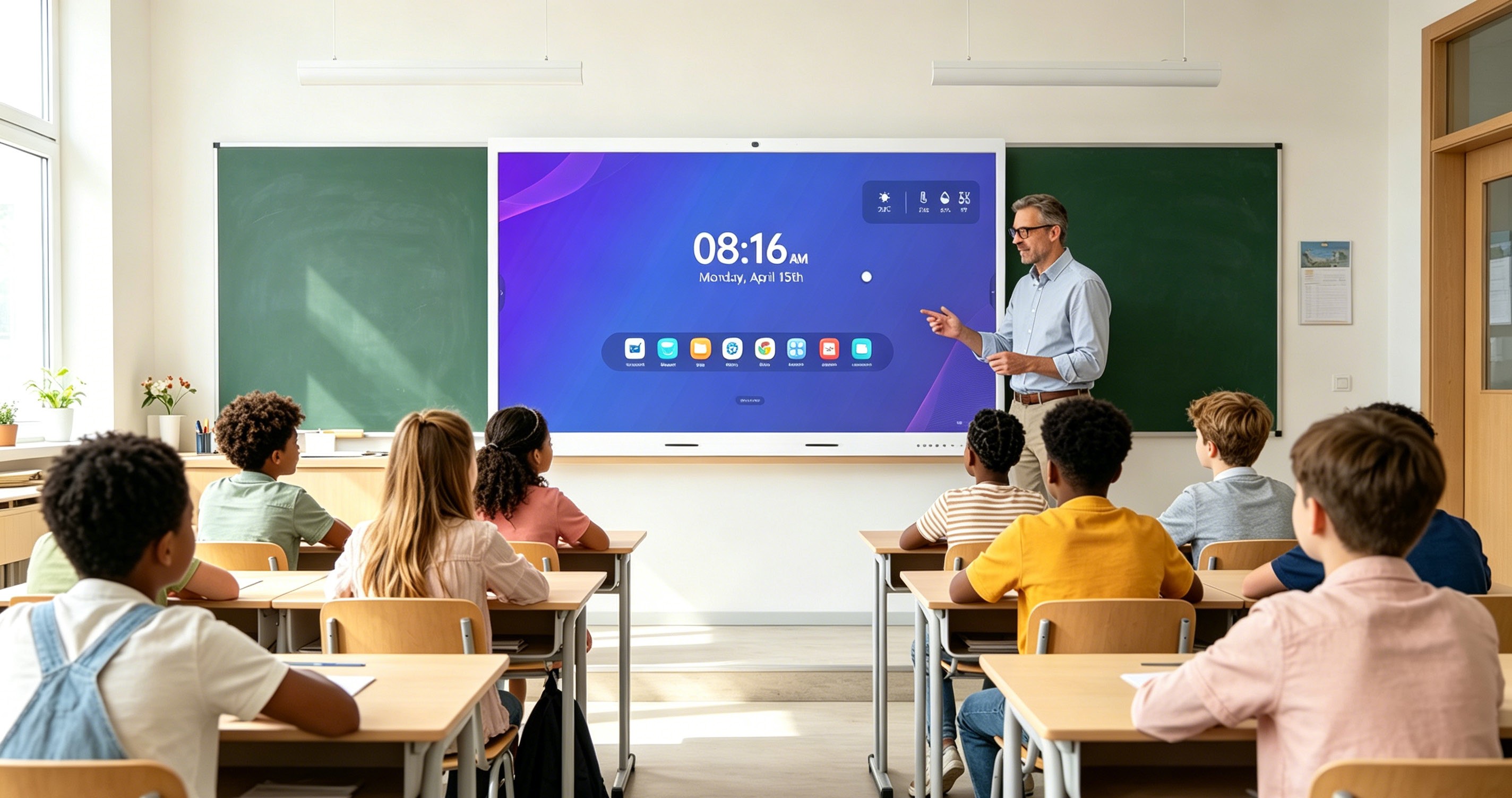

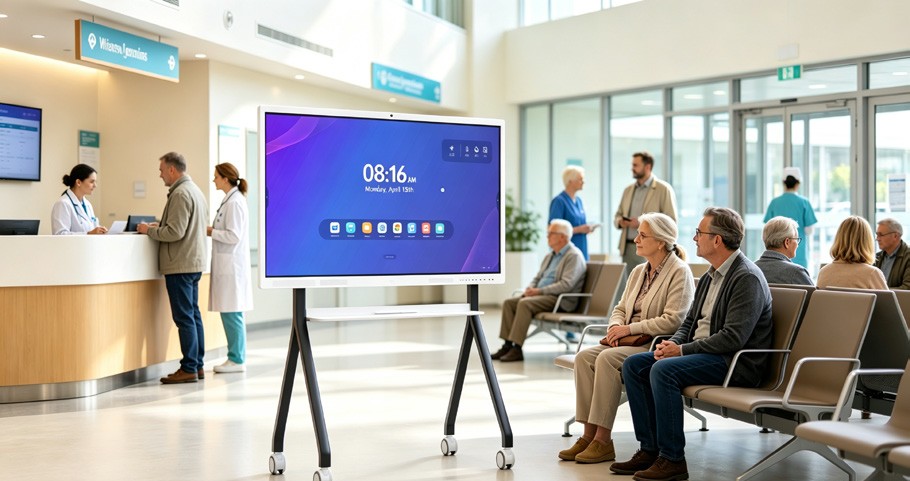

Best for: Auditoriums, showrooms and flagship public spaces
- 110" 4K UHD anti-glare panel, 450 cd/m²
- Android 15 · RK3588 · 6 TOPS NPU · 8GB RAM · 128GB storage
- Google EDLA certified · UMind AI whiteboard · cloud MDM
- 40-point IR touch · Wi-Fi 6 + Wi-Fi 5 · Bluetooth 5.2
- Front USB-C + HDMI, OPS slot, 8-mic array, 48MP AI camera
Product photos
Overview
The EduBoard EBIP110 RK3588 pairs a 110" 4K 60Hz anti-glare panel with zero bonding and a 40-point IR touch system with the Android 15 / Rockchip RK3588 platform — an octa-core CPU, Mali-G610 MC4 graphics, a 6 TOPS NPU, 8GB RAM and 128GB storage. Google EDLA certification brings licensed Google Play, Classroom and Meet plus long-term security updates. The bundled software suite adds the UMind AI whiteboard (AI lesson preparation, shape and formula recognition, live translation and speech-to-text), UFile management for 20+ file formats with OneDrive and Google Drive integration, a voice AI assistant, and a cloud platform for OTA updates, app distribution and remote device monitoring. Hardware is equally complete: dual-band Wi-Fi 6 and Wi-Fi 5, Bluetooth 5.2, NFC, fingerprint reader, an 80-pin OPS slot, front USB-C with 65–100W power delivery, HDMI in, 2 × 20W speakers with a 20W subwoofer, an 8-microphone array and a 48MP AI camera with auto-framing and speaker tracking.
Android 15 on RK3588
Octa-core Cortex-A76/A55 at 2.2–2.4 GHz with Mali-G610 MC4, 8GB DDR (up to 32GB) and 128GB eMMC (up to 512GB).
AI-native platform
Built-in NPU with up to 6 TOPS powers on-device AI: real-time teaching tools, voice control, live translation and content summarization with low latency.
40-point IR touch
Precise 1mm IR touch with up to 40 touch and 20 writing points, 2mm minimum object, zero-bonding anti-glare glass.
Google EDLA certified
Enterprise-grade security, licensed Google Play, Classroom and Meet, and a long-term system update commitment.

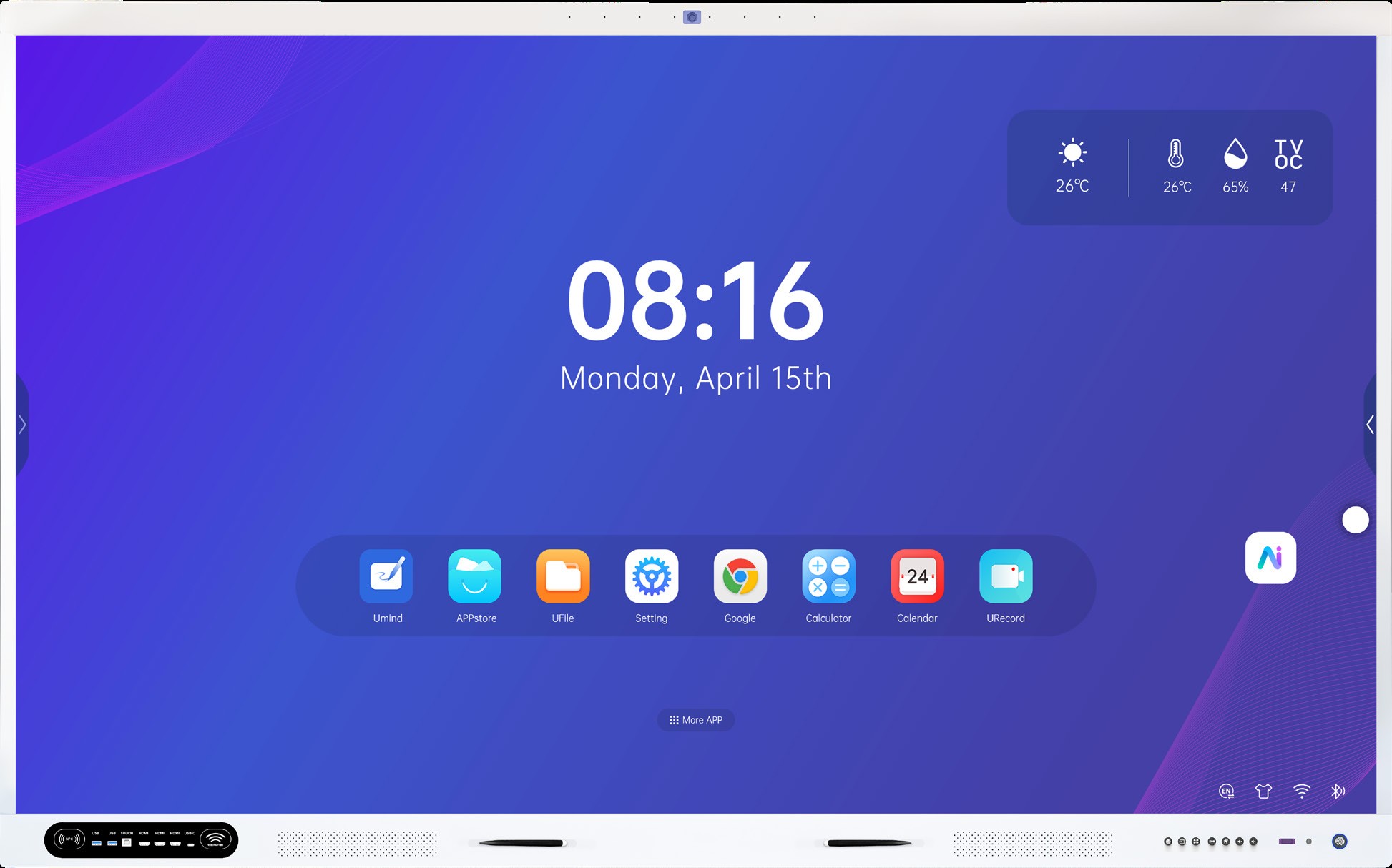

All-in-one software suite
UMind AI whiteboard, UFile smart file management with 20+ formats and cloud drives, an AI voice assistant, and a cloud MDM platform for OTA updates and remote monitoring.
Fully connected
Dual-band Wi-Fi 6 + Wi-Fi 5 with AP mode, Bluetooth 5.2, NFC, fingerprint, front USB-C (65–100W PD) and HDMI, 80-pin OPS slot, 8-mic array and 48MP AI camera.
Technical specifications
- Display size
- 110"
- Panel type
- Ultra HD Direct type LED
- Frame
- Aluminum frame, white color
- Resolution
- 3840 × 2160 @ 60Hz (4K UHD)
- Aspect ratio
- 16:9
- Contrast ratio
- 1200:1 (typ.)
- Brightness
- 450 cd/m²
- Color depth
- 1.07 billion colors
- Viewing angle
- 178°
- Glass
- Anti-glare glass with zero bonding, Mohs 7 hardness
- Lifespan
- 60,000 hours
- Touch technology
- IR touch, up to 40 touch points / 20 writing points (Windows)
- Touch precision
- 1 mm over 90% of area
- Touch response
- First point < 2 ms, continuation < 8 ms
- Minimum object size
- 2 mm
- Touch OS support
- Windows 7/8/10/11, Android, macOS, Linux, Chrome OS
- Front speakers
- 2 × 15W (2 × 20W)
- Subwoofer
- 1 × 20W
- Microphone
- 8 wide-area microphones with auto switch
- Camera
- 48MP (AI) / 64MP, up to 4208 × 3120 @ 30fps, FOV D=119° H=97° V=74°
- Front ports
- USB-C × 1, HDMI IN × 3, USB 3.0 × 2, USB-B × 1
- Front keys
- Power, signal source, settings, ECO, home, volume
- Bottom ports
- COAX, RJ45 IN, RJ45 OUT, MIC IN, earphone, RS232
- Side ports
- TOUCH OUT, HDMI IN × 2, HDMI OUT × 1, USB 2.0, USB 3.0 (Android), USB-C out, TF card
- Wireless
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2
- NFC
- Yes (reader/writer)
- Fingerprint
- Yes
- OPS slot
- 80-pin OPS slot for Windows module
- Operating system
- Android 15.0
- Chipset
- Rockchip RK3588
- CPU
- Quad-core Cortex-A76 + quad-core Cortex-A55, 2.2–2.4 GHz
- GPU
- Mali-G610 MC4
- RAM
- 8GB DDR (max. 32GB)
- Storage
- 128GB eMMC (max. 512GB)
- OTA updates
- Yes
- Light sensor
- Yes
- Power supply
- 100–240 V, 50/60 Hz
- Standby consumption
- ≤ 0.5 W
- Operating temperature
- 0°C – 40°C / 32–100°F
- Storage temperature
- -20°C – 60°C / -4–140°F
- Humidity
- 10% – 90% (operating and storage)
- Accessories
- 3 × Wi-Fi antenna, 2 × pen, remote control, 1.5m power cord, 1.5m HDMI cable, 1.5m USB touch cable, wall mount kit
- Warranty
- 1 year whole product, 3 years touch parts (extendable)
- Active area
- 2436.48 × 1370.52 mm
- Pixel pitch
- 0.6345 × 0.6345 mm
- VESA mount
- 800 × 600 mm
